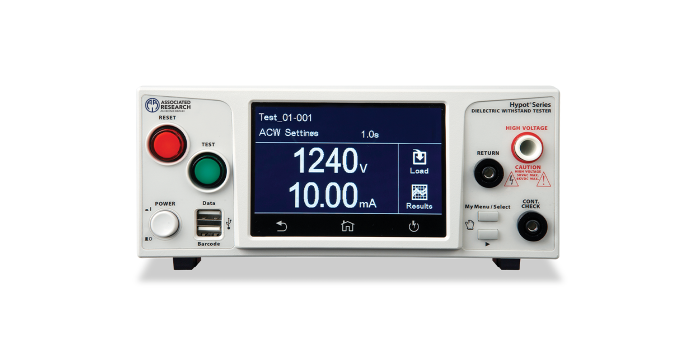

Hypot® 3865

5 kV @ 20 mA AC, 6 kV @ 7.5 mA DC Hipot Tester, CE listed


The 3865 raises the bar for safety and efficiency in production line Hipot Testers. If your application requires AC or DC Withstand test or Ground Continuity, the 3865 is the electrical safety tester for you.

Safety Features: Safety Interlock, SmartGFI®, Security Access, PPE Compatibility
Productivity: Programmable Memory, Arc Detection, Single Step, FailCHEK®, Cal Alert®, Voltage on the Fly, I-Max
Warranty: 5 Year Warranty
Dimensions (W x H x D): 8.5" x 3.5" x 11.9" (215 x 88.1 x 300 mm)
Weight: 12 lbs (5.46 kg)

$2,399.00
$2,399.00
AC Hipot
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.00-20.0mA
Output Frequency = 50/60Hz
DC Hipot
Voltage Output = 0-6000VDC
Leakage Current Limits = 1µA-7.500mA
DC Ripple ≤ 5% Ripple RMS at 6KVDC @ 7.5mA, Resistive Load
Ground Continuity
Current = DC 0.1A ± 0.01A, fixed
Resistance Limits = 0.0Ω-1.50Ω

Hypot Instrument
High Voltage Cable
Return Cable
Fuse
USB Cable
Line Cord
Adapter Box
Interlock Disable Key
