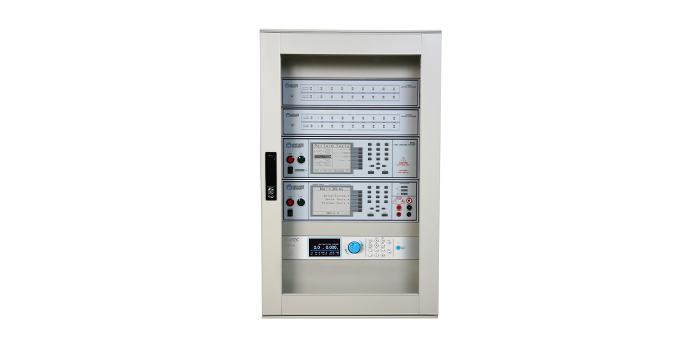

MedTEST

Customizable Complete Test Solution

Our MedTEST system is designed to provide a complete test solution for medical device manufacturers in need of conforming to the IEC 60601-1 3rd Edition Standard. Customize your MedTEST system to satisfy your individual testing requirements including Hipot, Ground Bond, Insulation Resistance, Functional Run, and Leakage Current testing for all B, BF, and CF type applied parts including Mains on Applied Parts (MOAP) tests. Up to 40 A of continuous DUT current combined with our Active Link^® technology reduces overall test time and integration with our SC6540 modular multiplexer allows for multi-point sequential testing without the need to change test leads.

Safety Features: Safety Interlock, SmartGFI^®
Productivity: Interconnection
Warranty: 5 Year Warranty

$0.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Insulation Resistance

Functional Run

Leakage current

OMNIA^® II 8207 AND SC6540
• All-in-one testing system
• Built in 500 VA AC power source
• Efficient use of rack space
• SC6540 provides automated multi-point testing

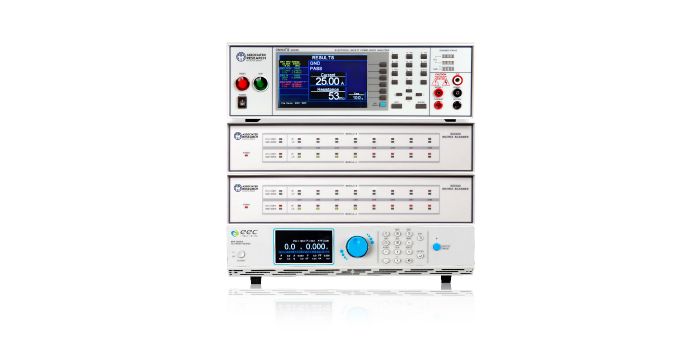

OMNIA^® II 8206, SC6540 & EEC8500 AC POWER SOURCE
• All-in-one testing system
• Compatible EEC power source provides power to DUT Available power ratings: 500 VA-4 kVA
• SC6540 provides automated multi-point testing. Most common applications

OMNIA^® II 8204, 620L, SC6540 & APT 8500 AC POWER SOURCE
• All-in-one testing system
• Compatible EEC power source provides power to DUT Available power ratings: 500 VA-4 kVA
• SC6540 provides automated multi-point testing
• Up to 40 A continuous current capability for applications that draw greater than 16 A of current

Enhance Your Safety Testing

Applications Consulting

Digital, On-Site and Validation Consulting Options

With Applications consulting we can help you ensure your company is meeting industry standard testing requirements while minimizing risks for your employees in the lab and on the production line. Our applications engineers will help you in your electrical safety testing. With our customized approach, we’ll ensure that your safe workstation conforms to OSHA requirements, educate your operators and work with you to validate your test system.

View Details

WithStand^®

Desktop and cloud software for easy recording, tracking, and storing of product test data.

WithStand Desk allows you to store sensitive test sequences and data test files on a local PC.

WithStand Cloud ensures that all tests and associated data are stored securely and readily accessible from anywhere, anytime.

WithStand supports the following Associated Research testers, including:

New OMNIA II Tester & EEC 8500 AC Power Source Support!
When coupled with either an Associated Research OMNIA II Model 8206 or Model 8256 tester and an EEC 8500 Series AC power source, WithStand can support device under test (DUT) leakage current and functional run testing.

The EEC 8500 Series is a dense, capability-rich AC power source line providing improved capability, functionality, and a reduced footprint compared to competing products. Supporting a breadth of applications, the 8500 Series offers an output voltage of up to 310VAC and an output frequency ranging from 5 Hz – 1200 Hz.

In addition, both WithStand Desk and WithStand Cloud now offer Chinese (Mandarin) language support.
