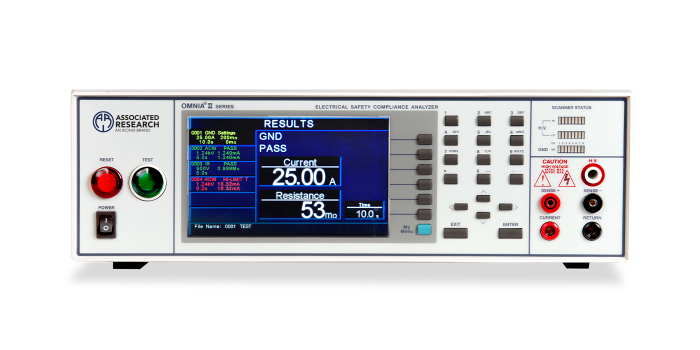

OMNIA II 8207

5 kV @ 50 mA AC, 6 kV @ 20 mA DC Hipot with Insulation Resistance, 40 Amp Ground Bond, Functional Run, Leakage Current Tester, Built-in AC Power Source, CE listed


The 8207 is part of the OMNIA® II Series, the automated line of multi-function Electrical Safety Testers designed to meet your demanding application requirements. We’ve included exclusive productivity-enhancing features and the latest in safety technology. If your application requires AC Hipot, DC Hipot, Ground Bond, Ground Continuity, Insulation Resistance, Leakage Current, and Functional Run test capabilities, as well as a 500 VA AC Power Source, the 8207 Advanced Electrical Safety Compliance Tester and Power Source is sure to satisfy all of your Electrical safety testing needs. CE Listed.

Safety Features: Safety Interlock, SmartGFI®
Productivity: PLC Remote Inputs and Outputs, Low-Current Sense, Electronic Ramping, Arc Detection, FailCHEK®, Cal Alert®, Prompt and Hold, Ramp-HI®, Charge-LO®, DualCHEK®, 4-Wire Measurement, Built-in AC Power Source
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.93" x 5.24" x 19.69" (430 x 133 x 500 mm)
Weight: 83 lbs (38 kg)

$16,499.00
$16,499.00
AC Hipot
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.001-50.0mA
Output Frequency = 50/60Hz
DC Hipot
Voltage Output = 0-6000VDC
Leakage Current Limits = 0.0µA-20.00mA
DC Ripple ≤ 4% Ripple RMS at 5KVDC @ 20mA, Resistive Load
Ground Bond
Output Voltage = 3.0-8.0VAC
Output Current = 1.00-40.0AAC
Resistance Range = 0-600mΩ


Continuity
DC Output Current = 0.001A-0.1ADC
Resistance Range = 0.000-10,000Ω
Insulation Resistance
Voltage Output = 30-1000VDC
Resistance Range = 0.05MΩ-50.0GΩ
Leakage Current Test
Voltage Meter = 0-277VAC
Current Meter = 0-16AAC
Leakage Current (RMS) = 0.1µA-10.00mA
Leakage Current (Peak) = 0.1µA-10.00mA
Fault Conditions = Neutral Switch, Ground Switch, Polarity Reversal Switch


Run Test
Voltage Meter = 0-277VAC
Current Meter = 0-16AAC
Watt Meter = 0-4500W
Power Factor = 0.000-1.000
Leakage Current = 0.00-10.00mA
500 VA AC Power Source
Power = 630VA and 500W Max.
Voltage Output = 0-277.0VAC
Current Output = 0.00-4.20AAC
Frequency Output = 45.0-500Hz.

OMNIA II Instrument
Interlock Connector Male
Input Power Cable USA
High Voltage Lead 5 FT (Qty 3)
USB Cable
3U Rack Mount Bracket
3U Rack Mount Handle
Rack Mount Handle Screws
Fuse
40 Amp High Current Lead 5 FT
40 Amp High Current Return Lead 5 FT
40 Amp High Current Return Lead 10 FT
Universal US 3 FT Cable Length
