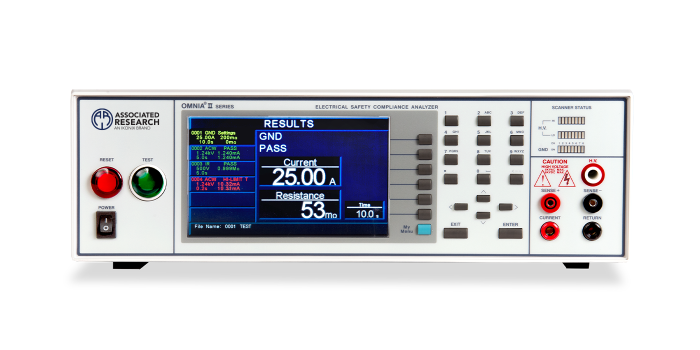

OMNIA® II 8204
5 kV @ 50 mA AC, 6 kV @ 20 mA DC Hipot with Insulation Resistance, 40 Amp Ground Bond Tester, CE listed
The 8204 is part of the OMNIA® II Series, the automated line of multi-function Electrical Safety Testers designed to meet your demanding application requirements. We’ve included exclusive productivity-enhancing features and the latest in safety technology. If your application requires AC Hipot, DC Hipot, Ground Bond, Ground Continuity, and Insulation Resistance test capability, the 8204 Advanced Electrical Safety Compliance Tester is sure to satisfy all of your Electrical safety testing needs.
Weight: 82 lbs (37 kg)
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.000mA-50.0mA
Output Frequency = 50/60Hz
Voltage Output = 0-6000VDC
Leakage Current Limits = 0.0µA-20.00mA
DC Ripple ≤ 4% Ripple RMS at 5KVDC @ 20mA, Resistive Load
Output Voltage = 3.0-8.0VAC
Output Current = 1.00-40.0AAC
Resistance Range = 0-600mΩ
DC Output Current = 0.001A-0.1ADC
Resistance Range = 0.000-10,000Ω
Voltage Output = 30-1000VDC
Resistance Range = 0.05MΩ-50.0GΩ
