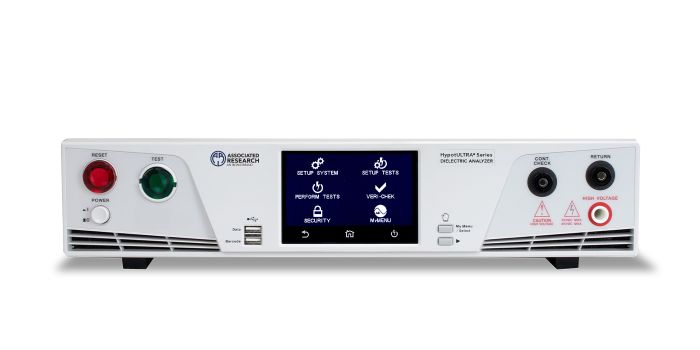

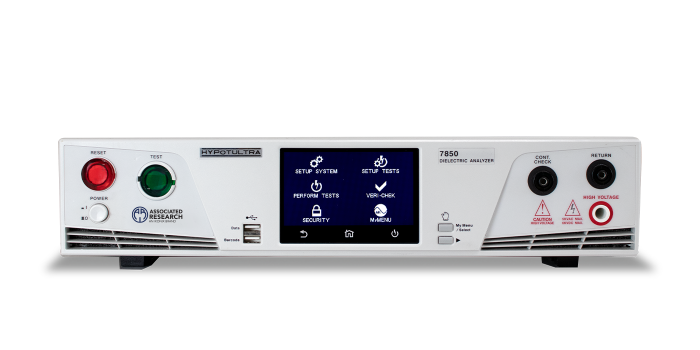

HypotULTRA® 7850

5 kV @ 40 mA AC, 6 kV @ 10 mA DC Hipot, 6 KV, Insulation Resistance Tester, CE listed


The 7850 is part of the HypotULTRA Series, the premier line of Electrical Safety Testers for Laboratory and Production Line testing. If your application requires AC Hipot, DC Hipot, Ground Continuity and Insulation Resistance test capabilities, the HypotULTRA 7850 is the dielectric withstand tester designed to take your production line to the next level.

Weight: 35 lbs (15.9 kg)

$5,149.00
$5,149.00
AC Hipot
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.000-40.0mA
Output Frequency = 50/60Hz
DC Hipot
Voltage Output = 0-6000VDC
Leakage Current Limits = 0.0000-10,000µA
DC Ripple ≤ 4% Ripple RMS at 6 KVDC @ 10mA, Resistive Load
Continuity
DC Output Current = 0.001A-1ADC
Resistance Range = 0.000-10,000Ω

Insulation Resistance
Voltage Output = 10-6000VDC
Resistance Range = 0.1MΩ-50.0GΩ


HypotULTRA Instrument
Interlock Connector Male
Input Power Cable USA
High Voltage Lead 5 FT
Return Lead 5 FT (Qty 2)
Universal US
Nema L5-20
Nema L6-20
USB Cable
2U Rack Mount Bracket
2U Rack Mount Handle
Rack Mount Handle Screws
Fuse
