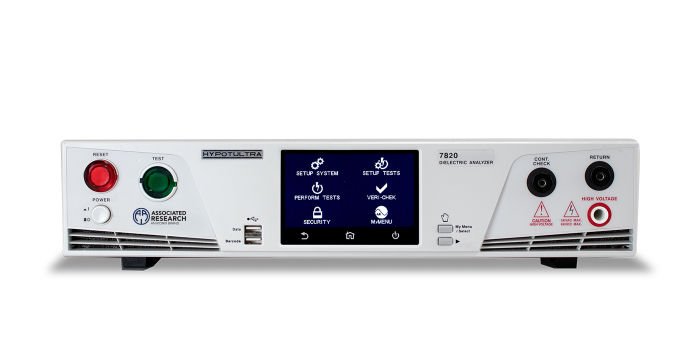

HypotULTRA® 7820
5 kV @ 40 mA AC, Ground Continuity, CE listed
The 7820 is part of the HypotULTRA Series, the premier line of Electrical Safety Testers for Laboratory and Production Line testing. If your application requires AC Hipot and Ground Continuity test capabilities, the HypotULTRA 7820 is the dielectric withstand tester designed to take your production line to the next level.
Safety Features: Safety Interlock, SmartGFI®, Security Access
Productivity: Arc Detection, FailCHEK®, Cal Alert®, Prompt and Hold, Data Transfer, Barcode Capability, ProVOLT®, Voltage on the Fly, I-Max, Nano-Amp Resolution, Voltage Drop Metering
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.92" x 3.50" x 15.75" (430 x 88.1 x 400 mm)
Weight: 34 lbs (15.4 kg)
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.000mA-40.0mA
Output Frequency = 50/60Hz
DC Output Current = 0.001A-1ADC
Resistance Range = 0.000-10,000Ω
