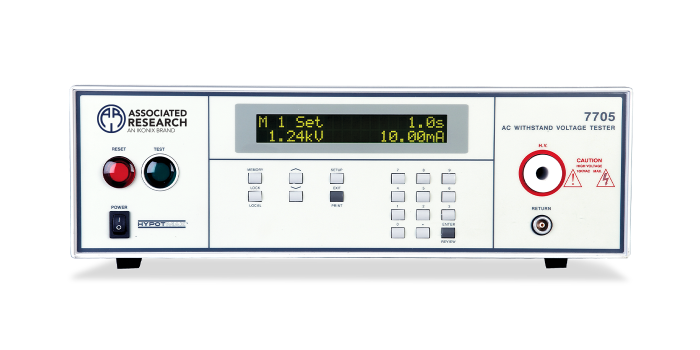

HypotMAX® 7705

10 kV @ 20 mA AC Hipot Tester, CE listed


The 7705 is part of the HypotMAX® Series, the automated line of High Voltage Withstand Testers designed to meet the demanding requirements of high voltage applications. If your application requires a high voltage AC Hipot test, the 7705 High Voltage Hipot Tester is sure to satisfy all of your Hipot testing needs.

Safety Features: Safety Interlock, SmartGFI®
Productivity: Arc Detection, Cal Alert®, PLC Remote Inputs and Outputs, Low-Current Sense, Electronic Ramping
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.93" x 5.24" x 15.75" (430 x 133 x 400 mm)

Weight: 61.65 lbs (28 kg)

$7,299.00
$7,299.00


AC Hipot
Voltage Output = 0.00-10.00kVAC
Leakage Current Limits = 0.000-20.00mA
Output Frequency = 50/60Hz





HypotMAX Instrument
Interlock Connector Male
Input Power Cable USA
12 kV High Voltage Lead 5 FT
Return Lead 5 FT
USB Cable
3U Rack Mount Bracket
3U Rack Mount Handle
Rack Mount Handle Screws
Fuse
