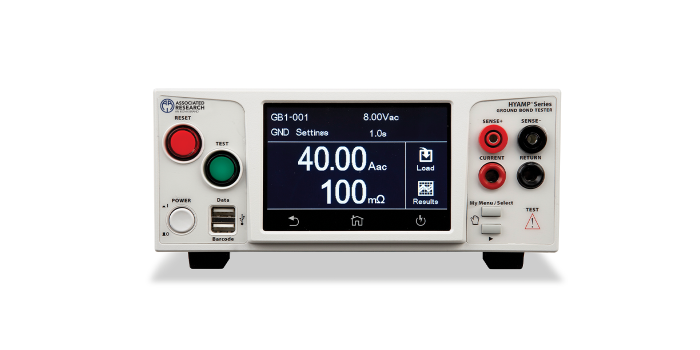

HYAMP® 3240

40 Amp AC/DC Ground Bond Tester, CE listed

The HYAMP® 3240 makes ground bond testing easy and efficient. Verify the integrity of your product’s ground circuitry with the HYAMP® Ground Bond Tester. If your application requires AC or DC current capabilties The HYAMP 3240 is the ground bond tester for you.

Safety Features: Safety Interlock, Security Access
Productivity: Barcode Capability, Data Transfer, FailCHEK®, Interconnect capability, Voltage drop metering, 4-Wire Kelvin Measurement
Warranty: 5 Year Warranty
Dimensions (W x H x D): 8.5" x 3.5" x 11.9" (215 x 88.1 x 300 mm)
Weight: 11 lbs (5 kg)


If you are in need of the MIMIC HU3 Command Set Option please request a quote.

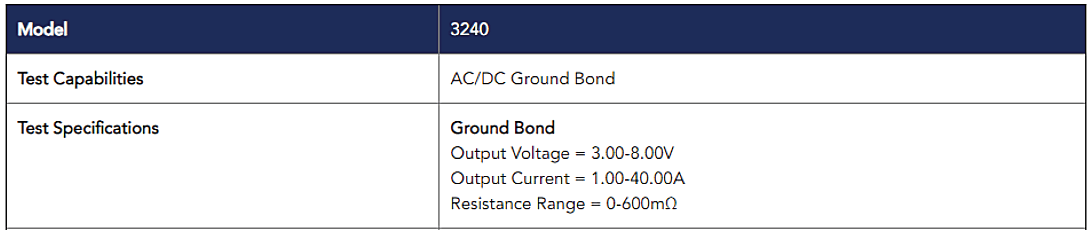

Ground Bond
Output Voltage = 3.00-8.00V
Output Current = 1.00-40.00A
Resistance Range = 0-600mΩ
HYAMP Instrument
Interlock Connector Male
Input Power Cable USA
40 Amp High Current Lead 5 FT
40 Amp High Current Return Lead 5 FT
