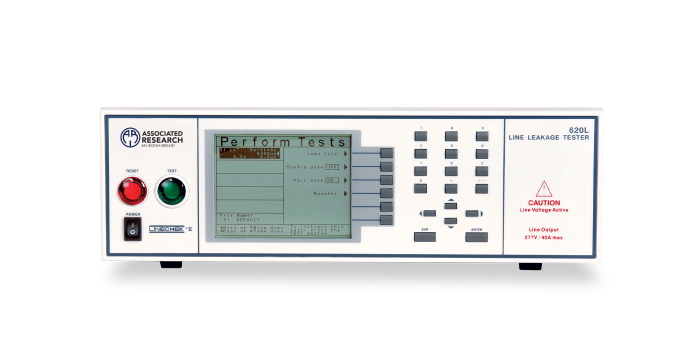

LINECHEK® 620L
Leakage Current Tester with up to 40A LCT/RUN, CE Listed
The LINECHEK 620L is designed for medical device manufacturers. It provides 7 measuring devices (MD’s) compliant with international certification bodies as well as a convenient switching network to simulate all 8 combinations of fault conditions. It has a feature set built around maximizing efficiency of the Leakage Current test. The 620L handles up to 40 A of continuous current and can be interfaced to an SC6540 modular multiplexer for multi-point testing. Interconnect the 620L to an OMNIA® II instrument to form a complete electrical safety compliance testing system. The LINECHEK 620L provides everything you need for full Leakage Current compliance.
Safety Features: Safety Interlock, Security Access
Productivity: Prompt and Hold, GFI Circuit, Expanded Memory, PLC Remote, Built-in Measuring Devices (MDs), RMS and Peak Readings, 40A Continuous Current Capability, Active Link®
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.93" x 5.24" x 11.81" (430 x 133 x 300 mm)
Weight: 26.45 lbs (12 kg)
Voltage Meter = 0-277VAC
Current Meter = 0-40AAC
Leakage Current (RMS) = 0.1µA-20.00mA
Leakage Current (Peak) =0.1µA-30.00mA
Fault Conditions = Neutral Switch, Ground Switch, Polarity Reversal Switch
Voltage Meter = 0-277VAC
Current Meter = 0-40AAC
Watt Meter = 0-10kW
Power Factor = 0.000-1.000
Leakage Current = 0.00-10.00mA
Interlock Connector Male
Input Power Cable USA
Return Lead 5 FT (Qty 2)
High Current Input LINE Cable
High Current Output LINE Cable
High Current Output NEUTRAL Cable
Universal US 3 FT Cable Length
3U Rack Mount Handle
Rack Mount Handle Screws
USB Cable
Fuse
