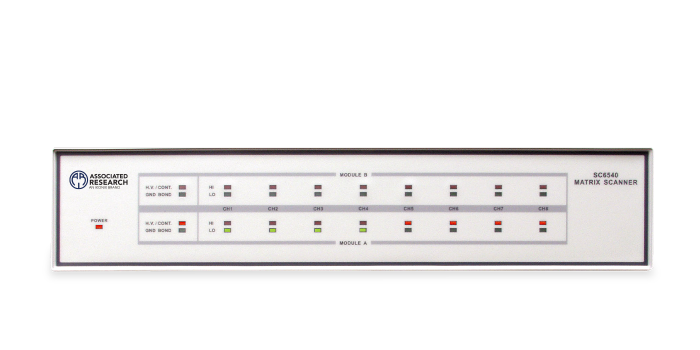

Model SC6540
Modular Scanning Matrix, CE Listed
The SC6540 Modular Multiplexer provides manufacturers with a huge productivity boost for electrical safety compliance testing. With up to 16 independent high voltage or high current channels in a convenient 2U design, the SC6540 Multiplexer (MUX) can be customized in 10 different configurations for multi-point Hipot, Ground Bond, Insulation Resistance, and Leakage Current testing. CE Listed
Safety Features: Safety Interlock, SmartGFI®
Productivity: Interconnection
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.93" x 5.24" x 11.81" (430 x 133 x 300 mm)
Weight: 26.45 lbs (12 kg)
Input (Main only): 115 VAC (± 10%), 50/60 Hz, single phase 230 VAC (± 10%), 50/60 Hz, single phase User selectable
Fuse (Main only): 250 V/2 A/fast-blow
PC Control (Main only): Standard: USB, RS-232 Optional: Ethernet, GPIB
Multiplexer Control Main: One Multiplexer bus output controls, up to 4 additional secondaries Secondary: One output and one input
Maximum HV Rating: 5 kV AC and DC
Maximum HC Rating: 40 A
SC6540 Scanner
Line Cord
Fuse (2A, 20mm, Fast-Blow)
USB Cable AB-Type 1.8m
Bracket Rack Mount 2U (Qty 2)
Handle Rack Mount 2U (Qty 2)
Screw M4 x 12mm FHMS (Qty 4)
SC6540 Scanner
25-Pin Scanner Bus Cable
High Voltage Interconnect
Bracket Rack Mount 2U (Qty 2)
Handle Rack Mount 2U (Qty 2)
Screw M4 x 12mm FHMS (Qty 4)
