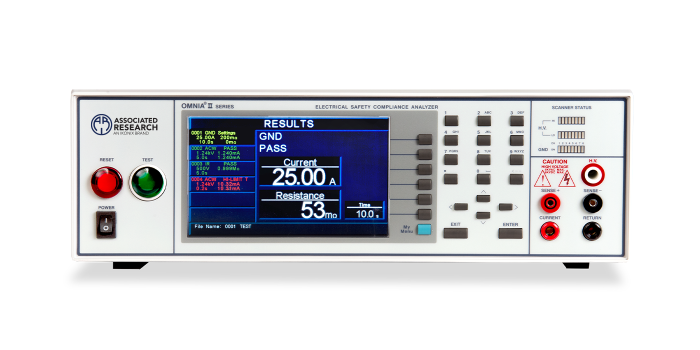

OMNIA® II 8257
500 VA, 5 kV @ 100 mA AC, 6 kV @ 20 mA DC Hipot with Insulation Resistance, 40 Amp Ground Bond, Functional Run and Leakage Current Tester, Built-in AC Power Source, CE listed
The 8257 is part of the OMNIA® II Series, the automated line of multi-function Electrical Safety Testers designed to meet your demanding application requirements. We’ve included exclusive productivity-enhancing features and the latest in safety technology. If your application requires AC Hipot, DC Hipot, Ground Bond, Ground Continuity, Insulation Resistance, Leakage Current, Functional Run, as well as a 500 VA AC Power Source, the 8207 Advanced Electrical Safety Compliance Tester and Power Source is sure to satisfy all of your Electrical safety testing needs.
Weight: 103 lbs (47 kg)
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.001-100.0mA
Output Frequency = 50/60Hz
Voltage Output = 0-6000VDC
Leakage Current Limits = 0.0µA-20.00mA
DC Ripple ≤ 4% Ripple RMS at 5KVDC @ 20mA, Resistive Load
Output Voltage = 3.0-8.0VAC
Output Current = 1.00-40.0AAC
Resistance Range = 0-600mΩ
DC Output Current = 0.001A-0.1ADC
Resistance Range = 0.000-10,000Ω
Voltage Output = 30-1000VDC
Resistance Range = 0.05MΩ-50.0GΩ
Voltage Meter = 0-277VAC
Current Meter = 0-16AAC
Leakage Current (RMS) = 0.1µA-10.00mA
Leakage Current (Peak) = 0.1µA-10.00mA
Fault Conditions = Neutral Switch, Ground Switch, Polarity Reversal Switch
Voltage Meter = 0-277VAC
Current Meter = 0-16AAC
Watt Meter = 0-4500W
Power Factor = 0.000-1.000
Leakage Current = 0.00-10.00mA
Power = 630VA and 500W Max.
Voltage Output = 0-277.0VAC
Current Output = 0.00-4.20AAC
Frequency Output = 45.0-500Hz.
