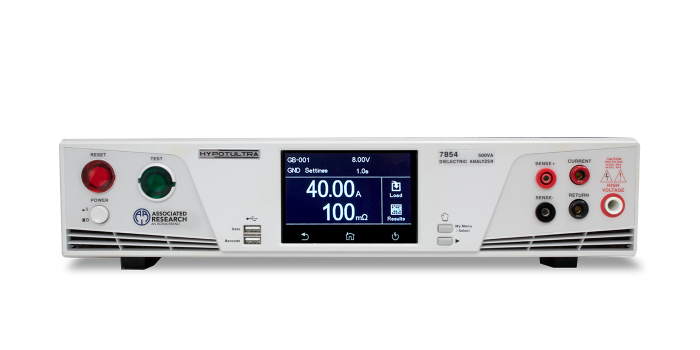

HypotULTRA® 7854
500 VA, 5 kV @ 100 mA AC, 6 kV @ 20 mA DC Hipot, Insulation Resistance, 40 Amp Ground Bond Tester, Continuity Tester, CE listed
The 7854 is part of the HypotULTRA Series, the premier line of Electrical Safety Testers for Laboratory and Production Line testing. If your application requires AC Hipot 500VA, DC Hipot, Ground Bond, Ground Continuity, and Insulation Resistance capabilities the HypotULTRA 7854 is the dielectric withstand tester designed to take your production line to the next level.
Weight: 46.3 lbs (21 kg)
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.000-100.0mA
Output Frequency = 50/60Hz
Voltage Output = 0-6000VDC
Leakage Current Limits = 0.0000-20,000µA
DC Ripple ≤ 4% Ripple RMS at 6 KVDC @ 20mA, Resistive Load
AC Output Current = 1.00A-40.00A
AC Output Voltage = 3.00-8.00 V
Resistance Range = 0-600mΩ
DC Output Current = 0.001A-1ADC
Resistance Range = 0.000-10,000Ω
Voltage Output = 10-6000VDC
Resistance Range = 0.1MΩ-50.0GΩ
